Fault diagnosis
EV Charger Repair and Troubleshooting in Santa Clara
Tripping breakers, fault codes, slow charging and installs done badly by somebody else, diagnosed properly across Santa Clara and Santa Clara County.
Start With the Circuit, Not the Hardware
EV charger repair and troubleshooting in Santa Clara begins with an assumption worth stating out loud: the charger is probably fine. The majority of faults we attend trace back to the circuit behind the unit rather than the unit itself, and the pattern is consistent. Conductors undersized for continuous duty run warm and trip the breaker on long sessions. A termination that was never torqued properly loosens over a year of heat cycling. A standard breaker that was never rated for continuous load does exactly what it was designed to do. Santa Clara EV Charger Installation diagnoses the circuit first, which regularly saves people the price of a replacement charger they did not need. When the hardware genuinely has failed, we say so and handle the warranty claim or the replacement.
What a Diagnostic Visit Covers
Every fault call follows the same method until the cause appears.
- 01
A full read of the fault behaviour before anything is opened
When it trips, how far into a session, whether it happens on one vehicle or several, and what changed recently. Half of these faults are identified from the pattern alone.
- 02
Breaker and circuit inspection at the panel
We confirm the breaker type and rating, check for heat discoloration, verify conductor sizing against the charger's continuous rating, and inspect the terminations.
- 03

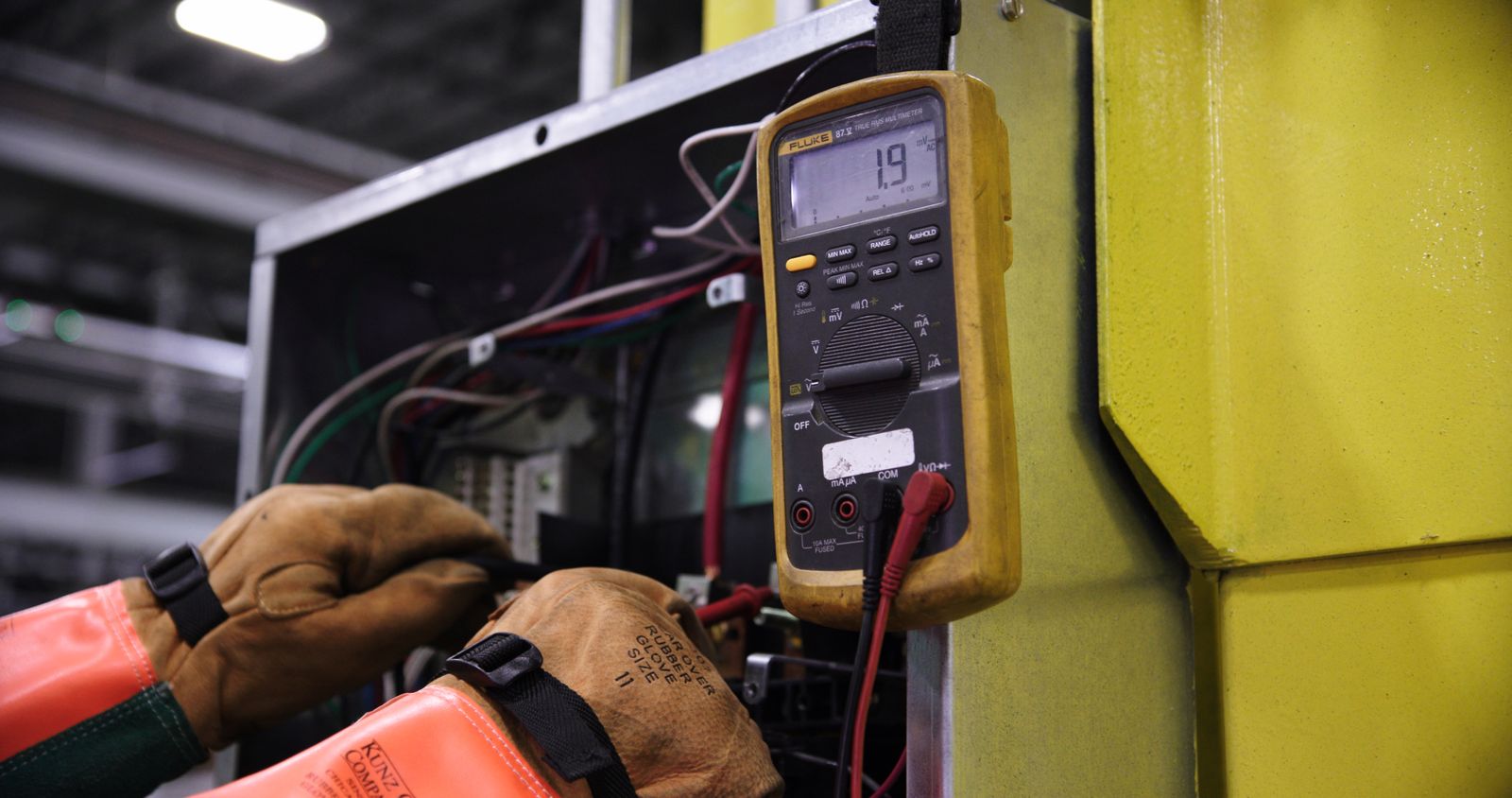

Torque verification on every termination in the path
Loose connections are the single most common physical cause of EV circuit faults. Each termination from breaker to charger is checked against the published torque value.
- 04
Voltage drop testing under actual load
We measure the circuit while the car is drawing, because a run that reads fine at rest can drop unacceptably over a long conduit path and cause the charger to fault out.
- 05
Ground-fault and insulation testing
Nuisance ground-fault trips often come from moisture in an exterior enclosure or a damaged conductor. We test rather than guess.
- 06
Charger fault-code retrieval and interpretation
We pull the unit's logged codes through its interface and read them against the manufacturer's documentation, rather than relying on the blink pattern alone.
- 07
Vehicle-side check to rule out the car
Onboard chargers fail too, and so do charge cables. Testing with a second vehicle or a known-good unit isolates which side the fault sits on.
- 08
Correction of non-compliant prior installations
Undersized conductors, missing ground-fault protection, residential-grade receptacles on EV duty and unpermitted circuits all get put right and brought onto permit.
- 09
Unit replacement and warranty handling where the hardware has failed
If the charger is genuinely dead, we confirm it, handle the manufacturer warranty claim where coverage exists, and fit the replacement.
- 10
Retroactive permitting where a prior install was never inspected
Unpermitted work found during diagnosis can be brought onto permit and inspected, which closes a liability most owners did not know they had.
Diagnosis, Then a Decision
Three stages, and nothing gets replaced before the cause is proven.
- 1
The call and the symptom pattern
Describe what the charger does and when. We can often name the likely cause on the phone and tell you whether this is a quick fix or something that needs the circuit rebuilt, which at least sets your expectations before anyone arrives.
- 2
On-site diagnosis
A diagnostic visit usually runs one to two hours. We work the circuit from the panel outward, test under real load, pull the unit's fault codes, and isolate the cause. You get a plain explanation of what is wrong and what caused it.
- 3
Repair priced before it starts
Once the cause is identified you get a written price for the fix, whether that is re-terminating a connection, replacing a breaker, rebuilding an undersized run or replacing the unit. Minor corrections are often completed on the same visit.
Why Diagnosis Beats Replacement
We diagnose before we sell you hardware
Replacing a charger is the easy recommendation and frequently the wrong one. Testing the circuit first costs you an hour and often saves you the price of a unit.
We correct other people's work without lecturing you about it
Plenty of these calls stem from an install done by someone unlicensed, often before the current owner bought the house. We fix it, permit it, and get on with the day.
One visit covers diagnosis and repair where possible
The van carries common breakers, conductors and terminations, so a fault identified in the morning is frequently resolved the same afternoon rather than scheduled for a return trip.
- Licensed C-10 Electrical Contractor
- EVITP-Certified Installers
- Diagnosis Before Replacement
- Bonded and Insured
- Written Repair Pricing
- Retroactive Permitting Available
Get Your Charger Working Again
Tell us what the unit does and when it does it, and we can usually narrow the cause before the visit. Diagnosis comes first, the written price comes second, and the repair only starts once you have seen both.
C-10 licensed · EVITP-certified · Permit, inspection and workmanship warranty included in the quoted price.
